| Brand | |
|---|---|
| Shape |
4-Sided |
| Size | |
| Heat Output |
17-20 kw |
| Flue diameter |
Ø 25 cm |

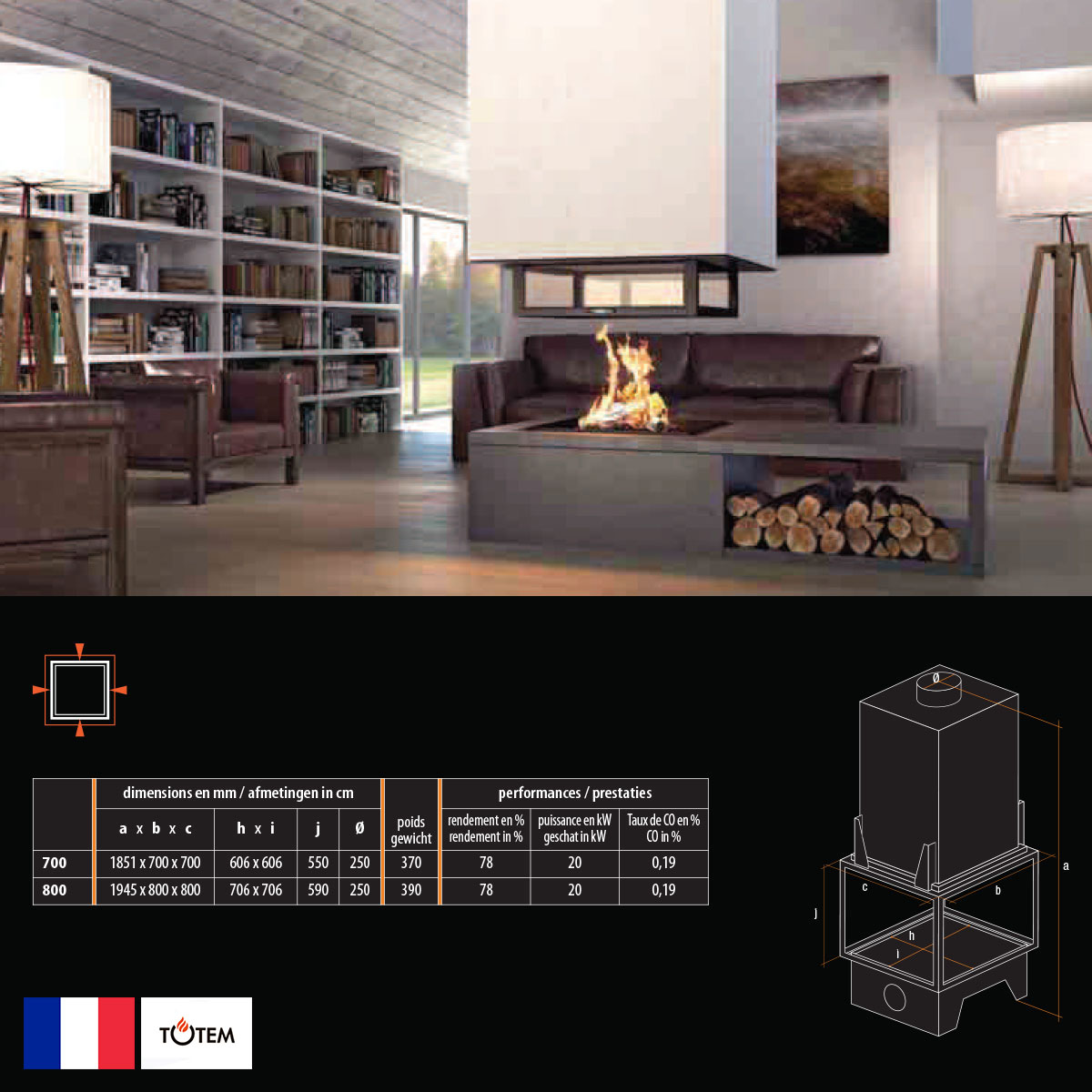

Dimensions: W 70 x H 185 x D 70 cm
Door dimensions: W 70 x H 55 x D 70 cm
Weight: 370 kg
Heat Output: 20 kw
Heating Surface: 105 to 220 m²
Heating Volume: 240 to 600 m³
Efficiency: 78%
Maximum log length: 25, 33 and 50 cm
Flue diameter: Ø 25 cm
Material: metal
Removable ashtray
Features:
– Total vision of fire: 100% retractable door
– Combustion management system: integrated air control
– Double combustion: improving efficiency, reducing emissions
– Fairing: convection air system
– Heat diffusion system: hot air outlet vents
– Heat preservation: vermiculite deflector
– Inertia: refractory Interior firebrick
– Maneuverability: synchronized opening of the door
– Easy cleaning of the glass: swinging door
– Ash pan
– Secondary afterburning system
– Gate valve
– Adjustable Clear Glass System
– Adjustable air supply Primary
System:
A 360° vision, circle or square, the spirit of fire in its pure state: tribal fire

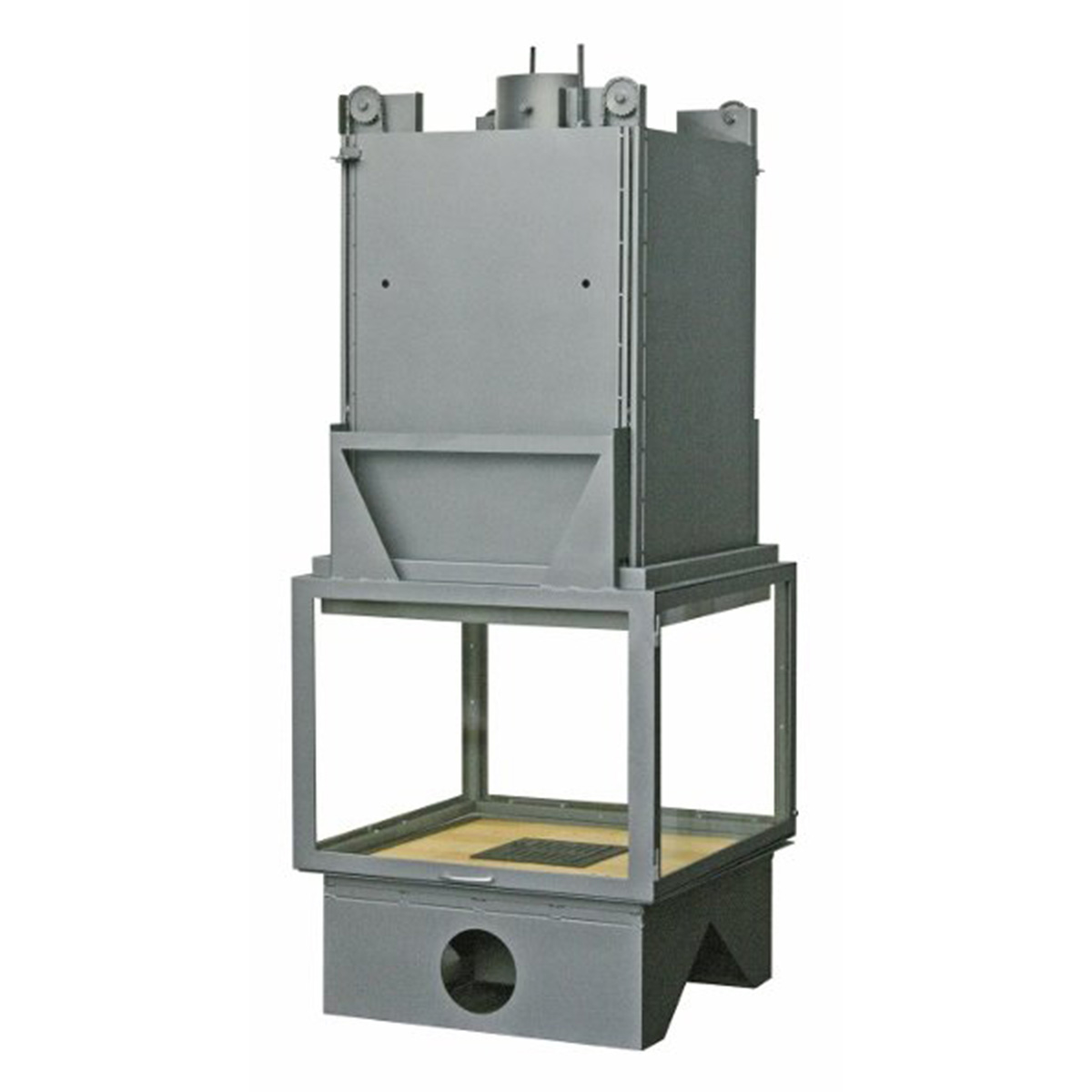

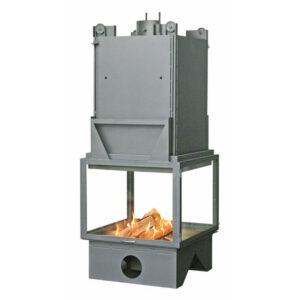

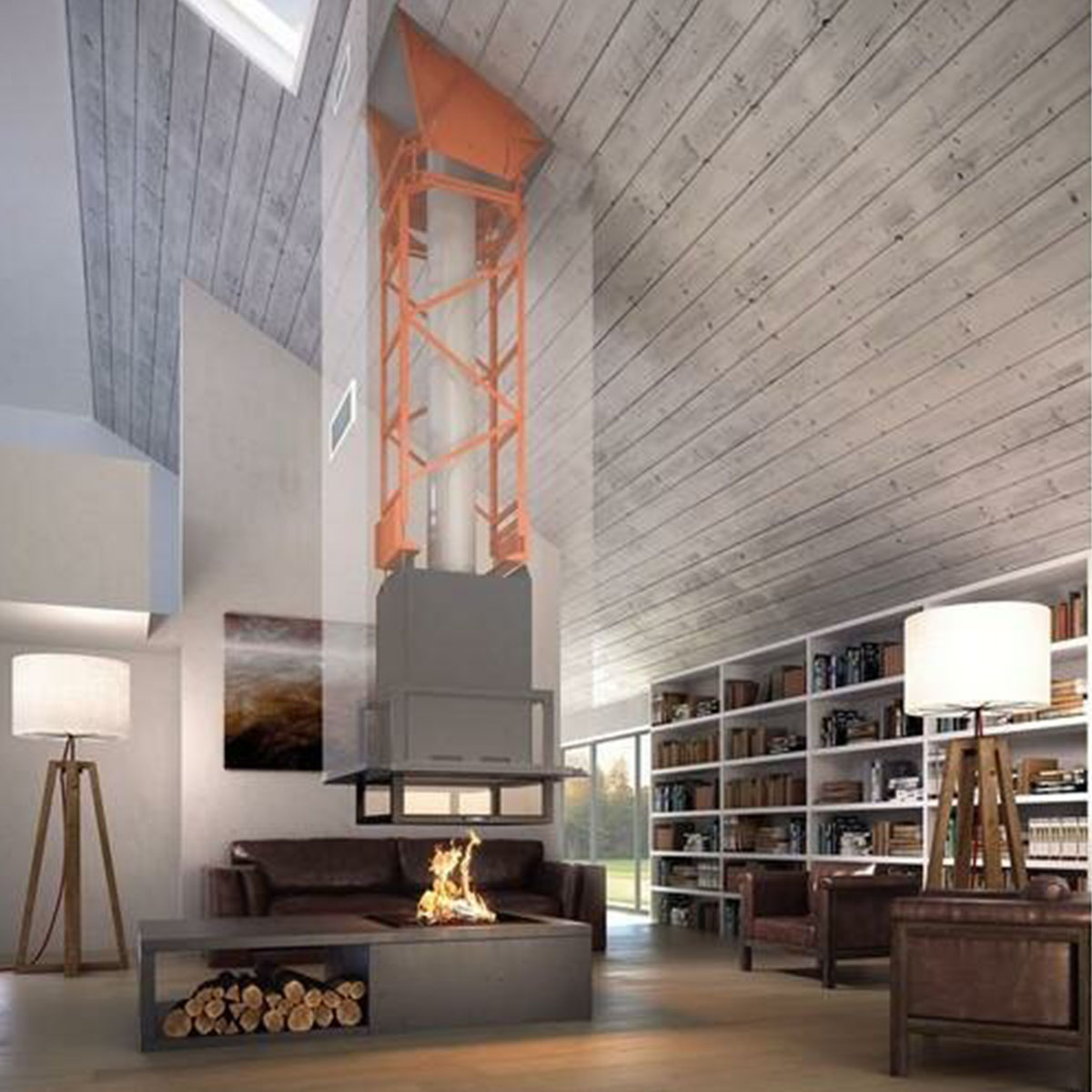

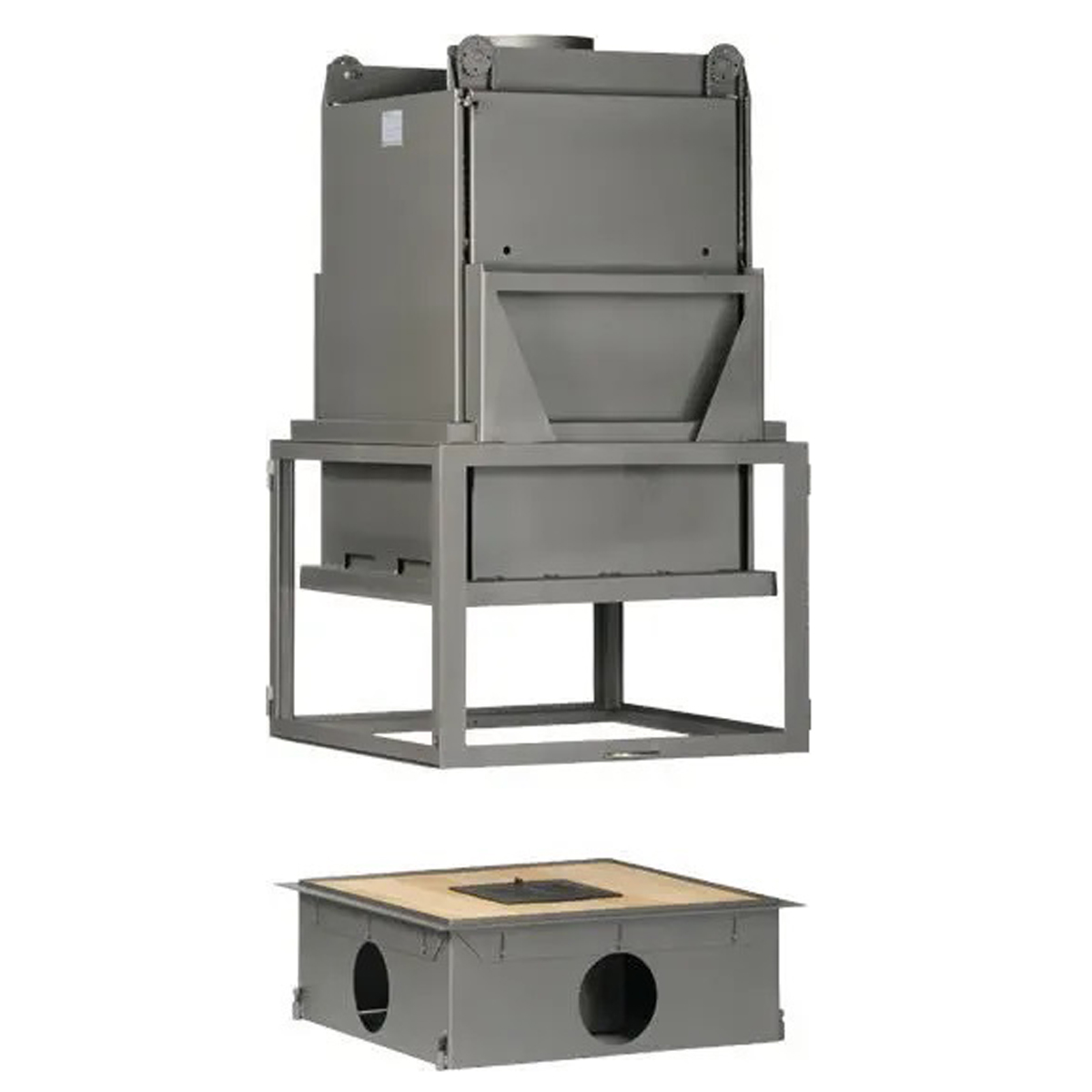

The firebox is intended for installation only in the center of the room, it is equipped with a lifting mechanism, with the help of which all four glasses rise up. Two opposite glasses open sideways for easy cleaning of the fireplace. The body of the furnace is made of steel. To install the firebox, you must additionally order a suspension system. Depending on the installation situation, it is necessary to choose the appropriate suspension option for the firebox based on the height of the room and the upper fixation of the mount. The focal zone of the base is lined with high-strength refractory bricks.
