| Brand | |
|---|---|
| Size | |
| Heat Output |
13-16 kw |
| Flue diameter |
Ø 15 cm |

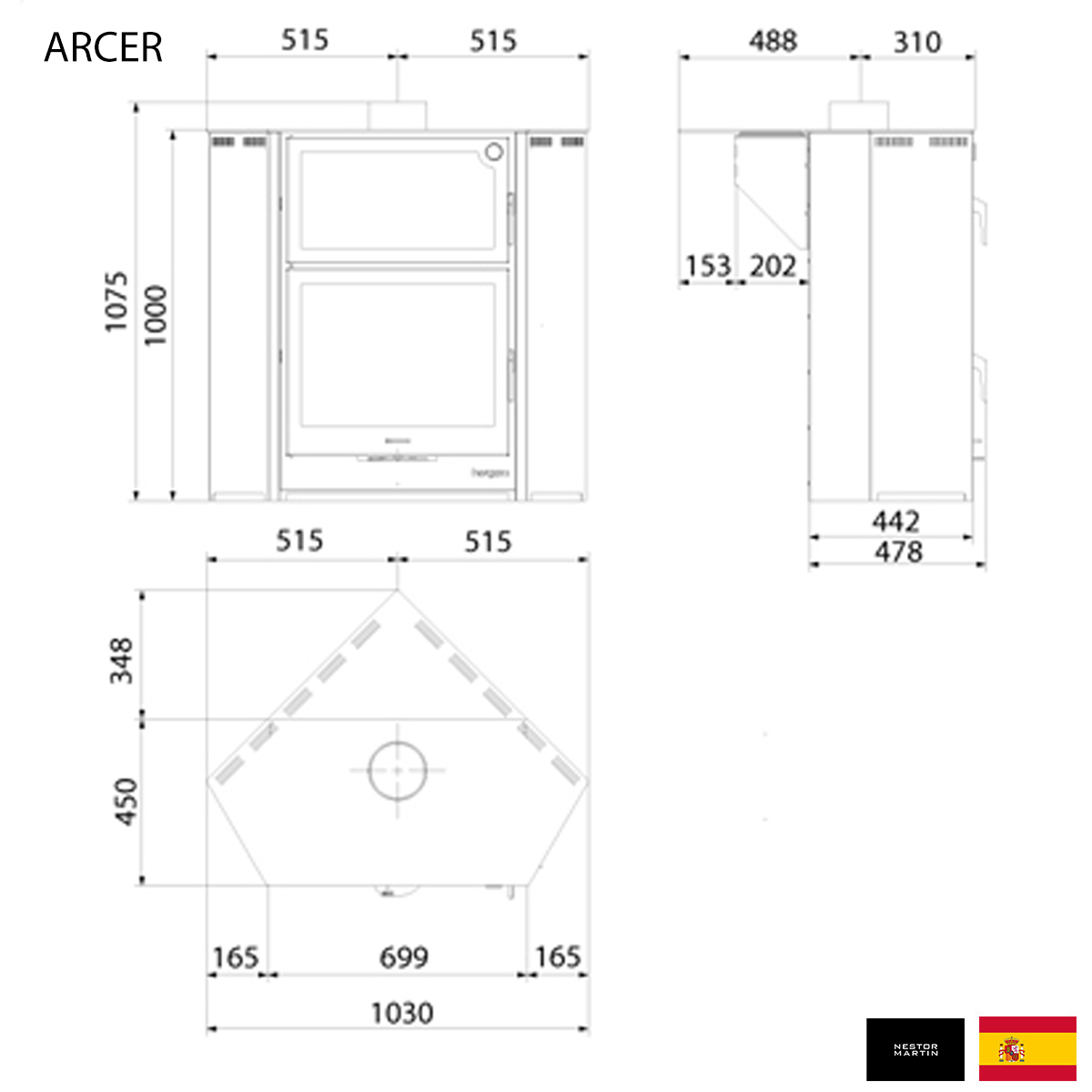

Dimensions: W 103 x H 107.5 x D 80 cm
Door dimensions: W 60 x H 50.5 cm
Glass dimensions: W 52 x H 38.5 cm
Oven dimensions: W 52 x 27.5 x 36.9 cm
Weight: 158 Kg
Nominal heat output: 12 Kw
Maximum power: 16 Kw
Heating surface: 65 to 145 m²
Heating volume: 160 to 360 m³
Maximum log length: 50 cm
Flue diameter: Ø 15 cm
Heating type: radiant
Material: black steel
Corner oven cooker maple R
Eco-design Ready
Energy efficiency class A+
Features:
• Thermometer available.
• Removable 2 stainless steel barbecue grills & stainless steel roasting tray.
• Grill rails available (removable)
• Big capacity oven in stainless steel for a clean and safe cooking.
• Removable oven for an easy cleaning and maintenance, assuring an efficient performance.
• Double wall construction for convective hot air circulation and oven heating.
• Vermiculite-lined firebox with refractory-lined floor.
• Outstanding combustion values: 80% efficiency, (more heat with less fuel), and 0,09% CO emissions (clean burn).
• Primary and secondary air controls. Responsive, gradual air control handle for a precise control of the oven temperature.
• Glass remains clean thanks to the Air wash system, which prevents the firebox window from fogging.
• Ash grate and removable ash pan for a convenient disposal of ashes.
A stove with oven for your home
Our wood stove with Arce wood oven is ideal for enjoying the pleasure of heating your home, as well as cooking with wood, thanks to its comfortable cast iron structure and its efficient combustion chamber, which allows you to obtain a 80% performance with minimal emissions.
Two bodies
Divided into two bodies, each with a glass-ceramic glass door, and also available in a corner version, it has many of the house’s trademark advantages, such as an ashtray drawer, air control by primary and secondary air regulators, ceramic glass and clean glass system.
Stainless steel oven
The oven, with a thermometer built into its door and a capacity of 52 liters inside, is made of stainless steel and removable for easy cleaning. It comes with two grills and a roasting tray, also in stainless steel.
