| Brand | |
|---|---|
| Heat Output |
5-8 kw |
| Size | |
| Flue diameter |
Ø 15 cm |

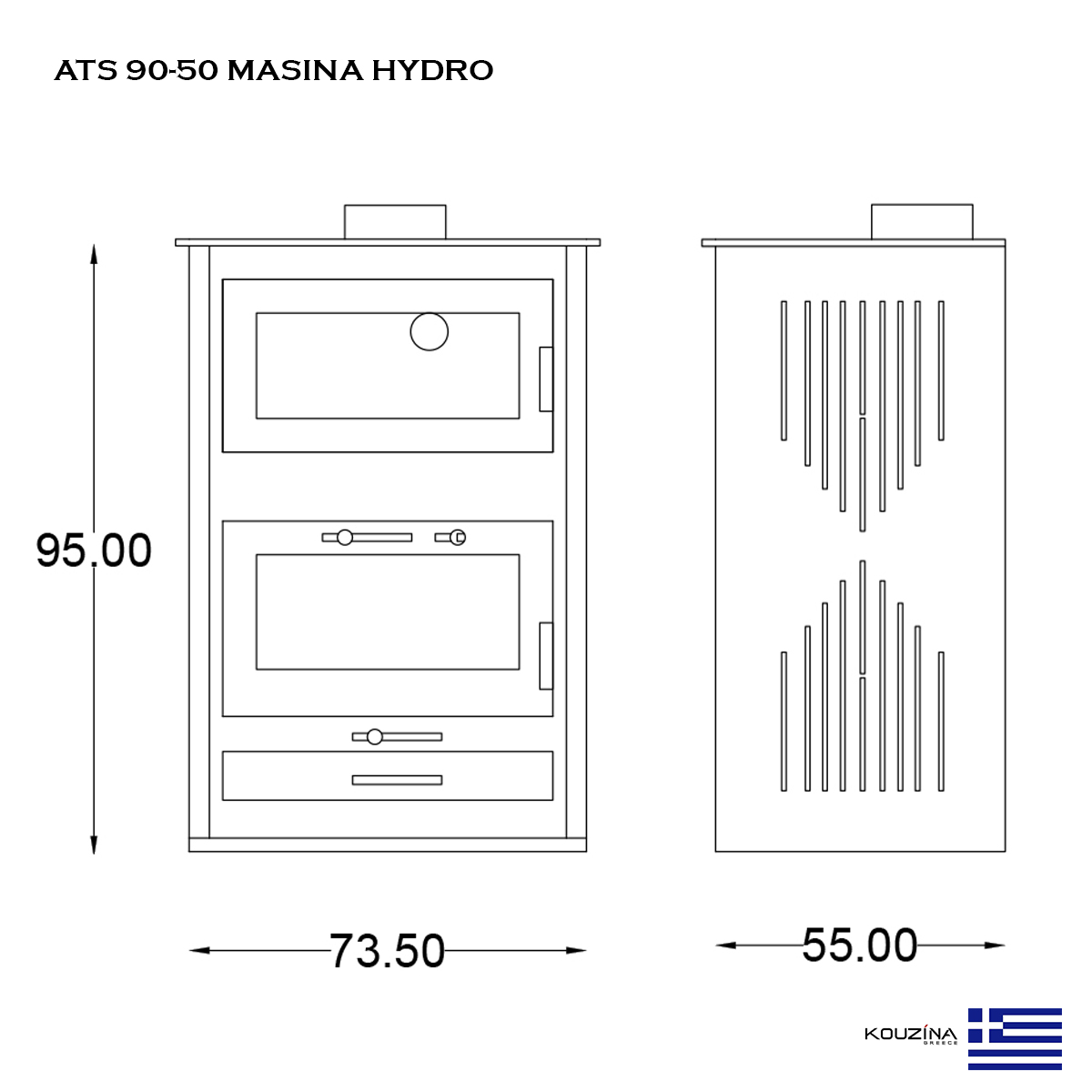

Dimensions: W 73.5 x H 95 x D 55 cm
Oven dimensions: W 41 x H 20 x D 36 cm
Combustion chamber: W 55 x H 25 x D 42 cm
Weight: 180 Kg
Optimal heat output: 27 kw for water + 8 kw for stove
Heating Surface: 140 – 290 m²
Heating Volume: 310 – 810 m³
water capacity: 45 kg
Flue Diameter: 15 cm
Combustion Chamber: Vermiculite and steel
Steel Frame
Ceramic Glass.

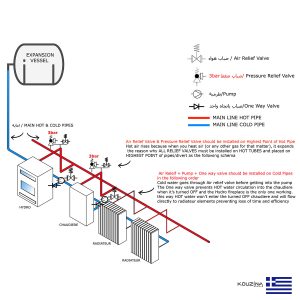

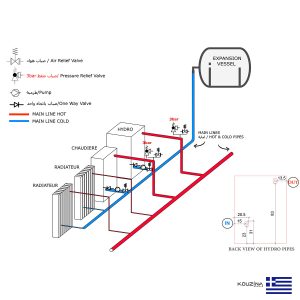

THE STEEL WOOD HEATER WITH BOILER AND OVEN HYDRAULIC MACHINE 90-50 can heat your space through the radiator circuit.
It is simple to install and due to its high performance and special features,
you classify it as one of the most useful and economical water heating stoves.
The design of the oven is functional and efficient, making cooking easier.
It has a container (drawer) at the bottom where the ash is collected, thus making it easier to remove.
It has an Enamel Oven, enamel pan, grill & thermometer 0-300°C..
