| Brand | |
|---|---|
| Heat Output |
Dimensions: W 61.5 x H 87.5 x D 55 cm
Weight: 183 Kg
Optimal heat output:14.5 Kw
Heating Surface: 80 to 185 m²
Heating volume: 195 to 455 m³
Flue Diameter: 15 cm
Combustion Chamber: Cast Iron
Cast Iron
Ceramic Glass.

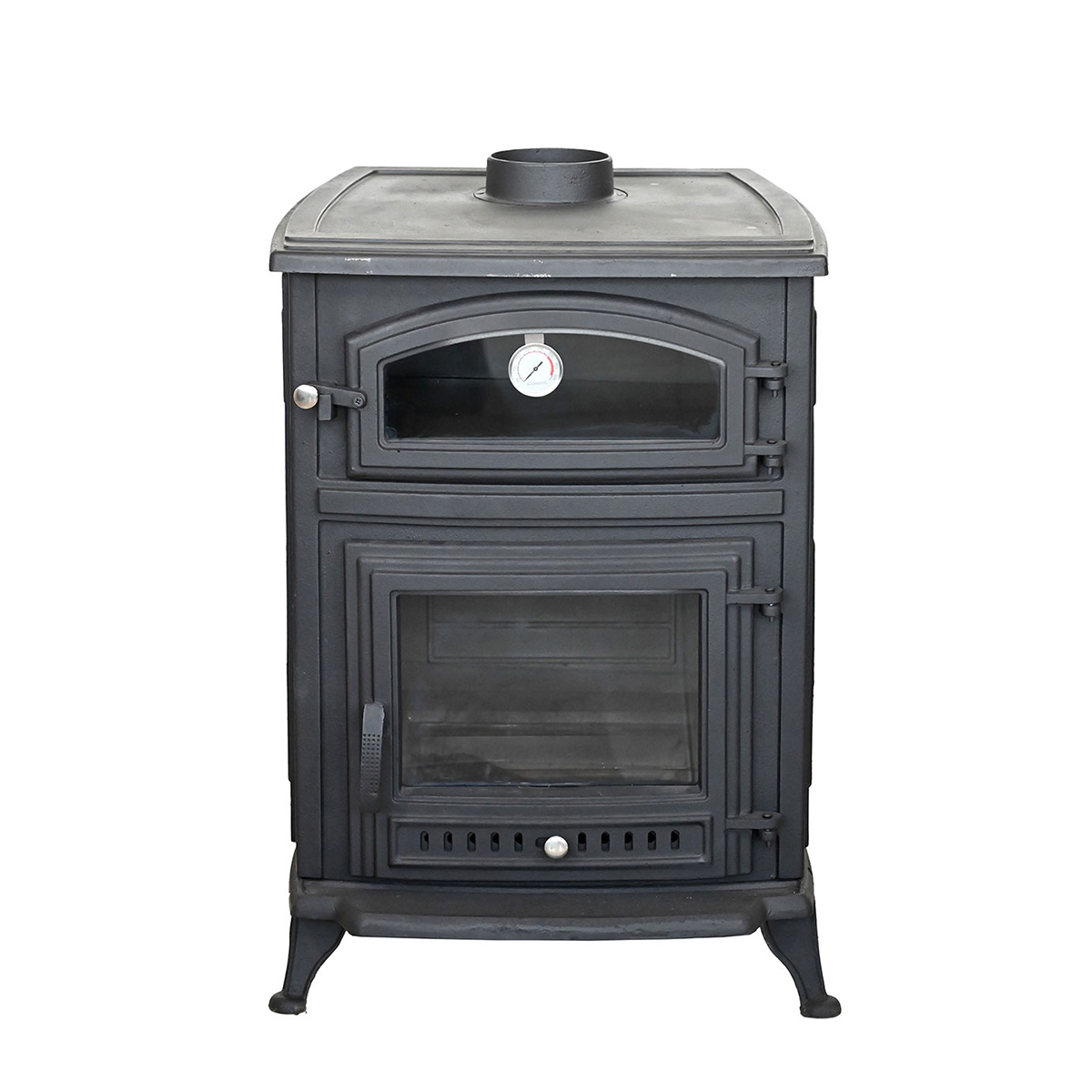

The device is used for space heating using solid fuels (natural wood logs). At the same time it is used for baking. Its oven is enamelled and contains an inox tray and grill.
The device is made of steel metal parts, of cast iron metal parts (bottom rack) and of glass surfaces that line the flame port (ceramic crystal) and the port of the warming oven.
The device is manually powered and intended to be installed as a free standing device.
Combustion air enters by natural flow through 12 longitudinal openings located at the base of the flame port. Combustion air is led into the combustion chamber without preheating.
The flue gases produced during the process of burning the fuel are led to the mouth of the flue located on the roof of the combustion chamber, diverted from the furnace installed on the roof of the combustion chamber.
The ash is guided by gravity through the lower grate into the urn located below the firebox. The approach to the urn requires the opening of the firebox.
The appliance is not designed to be used for continuous combustion.
